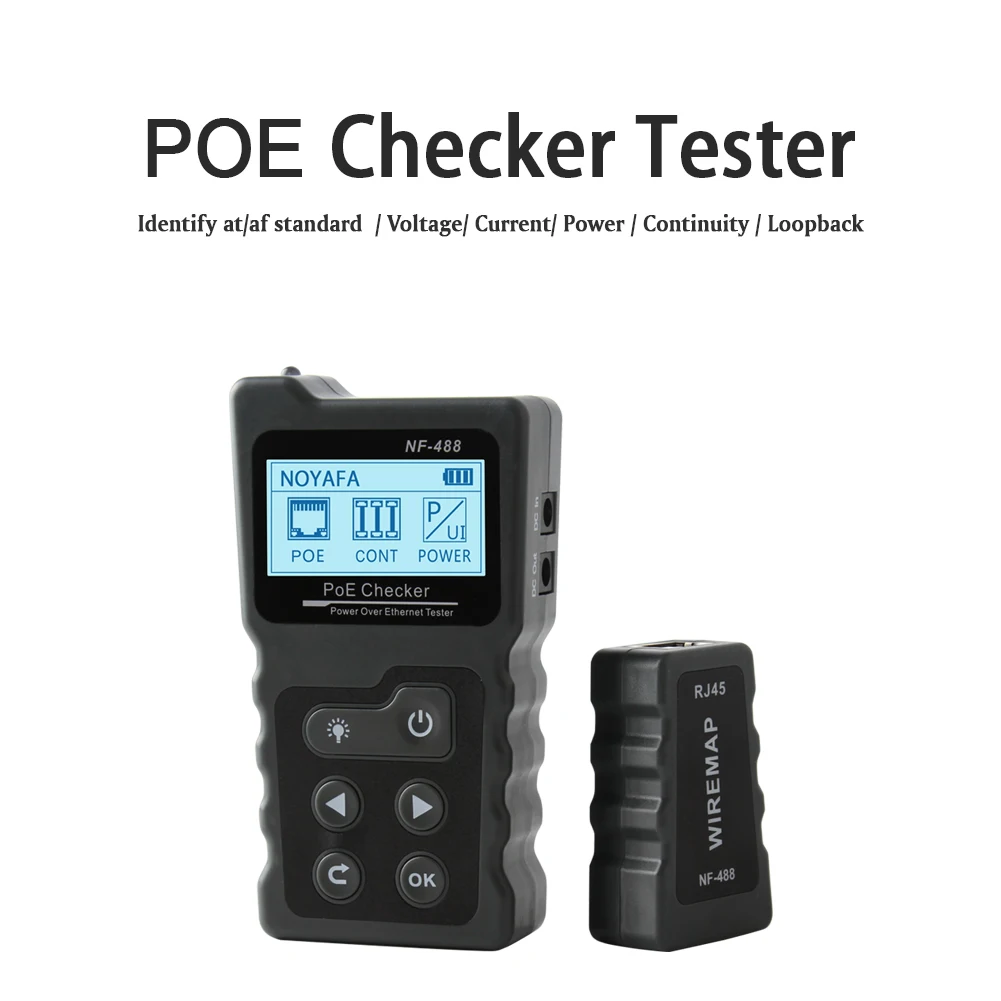

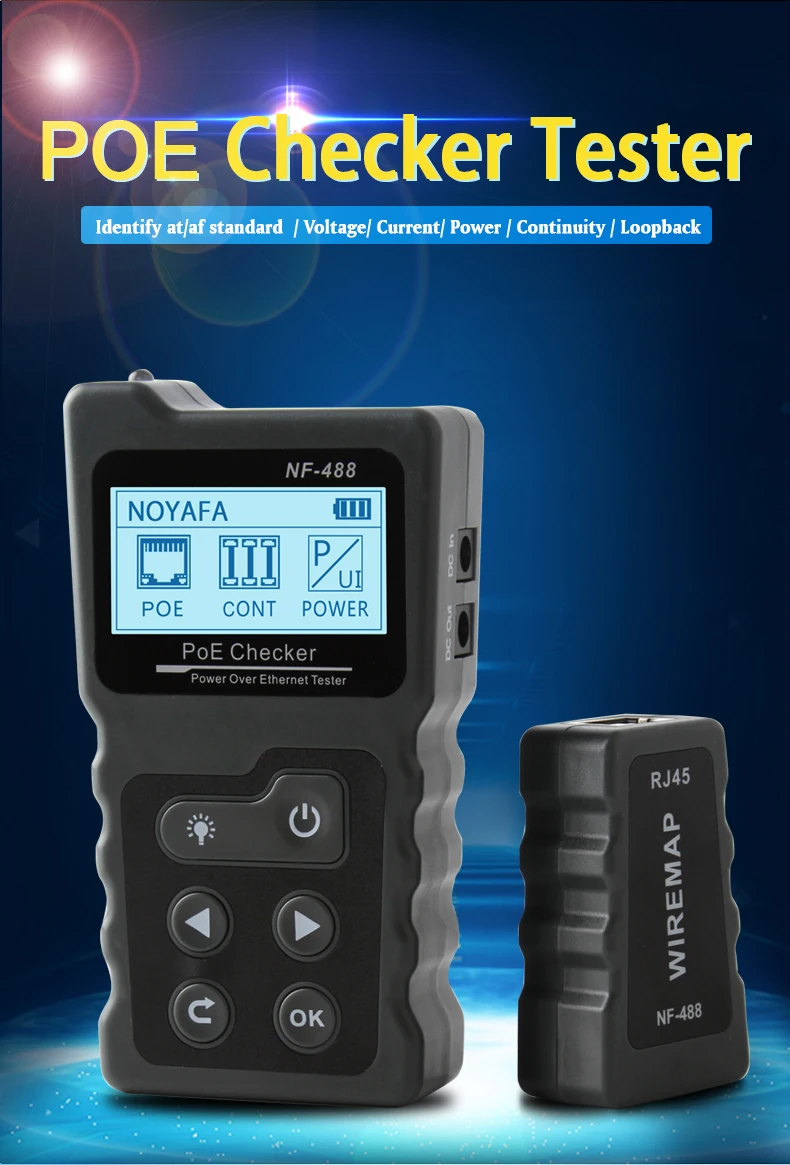

Features:

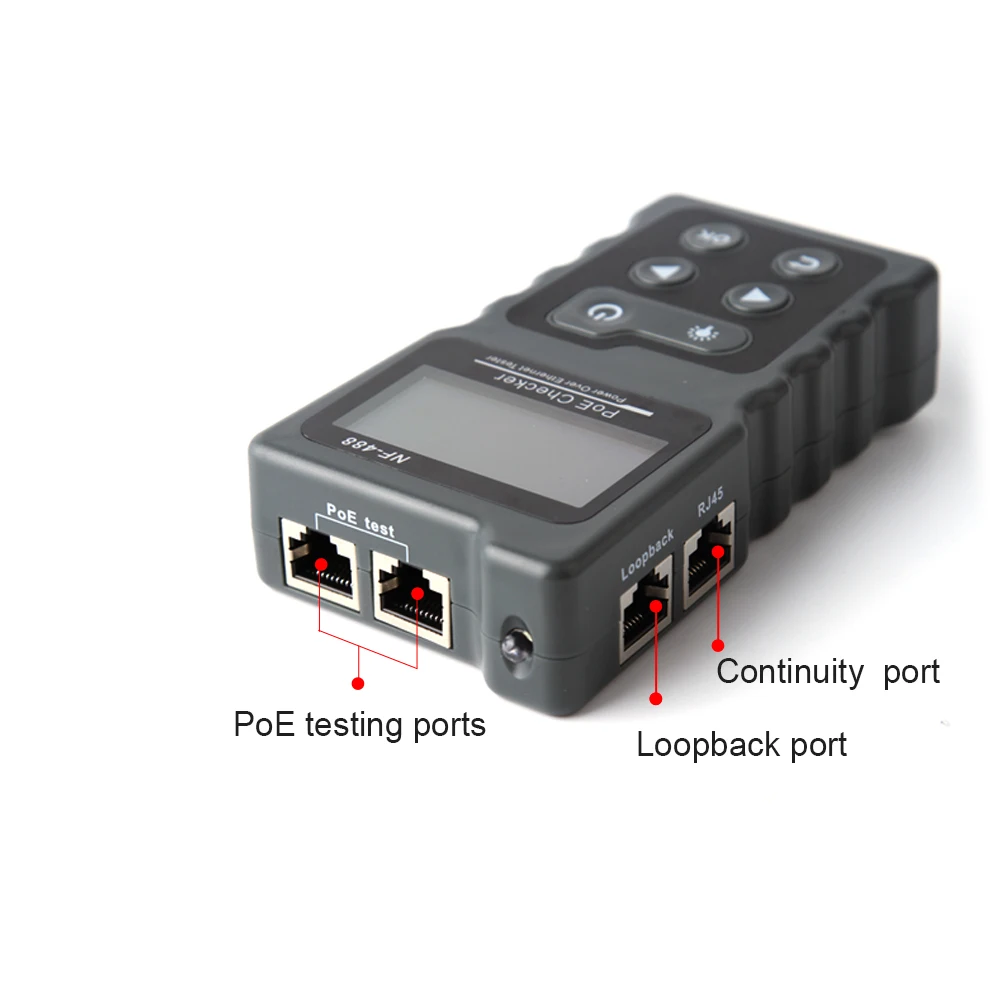

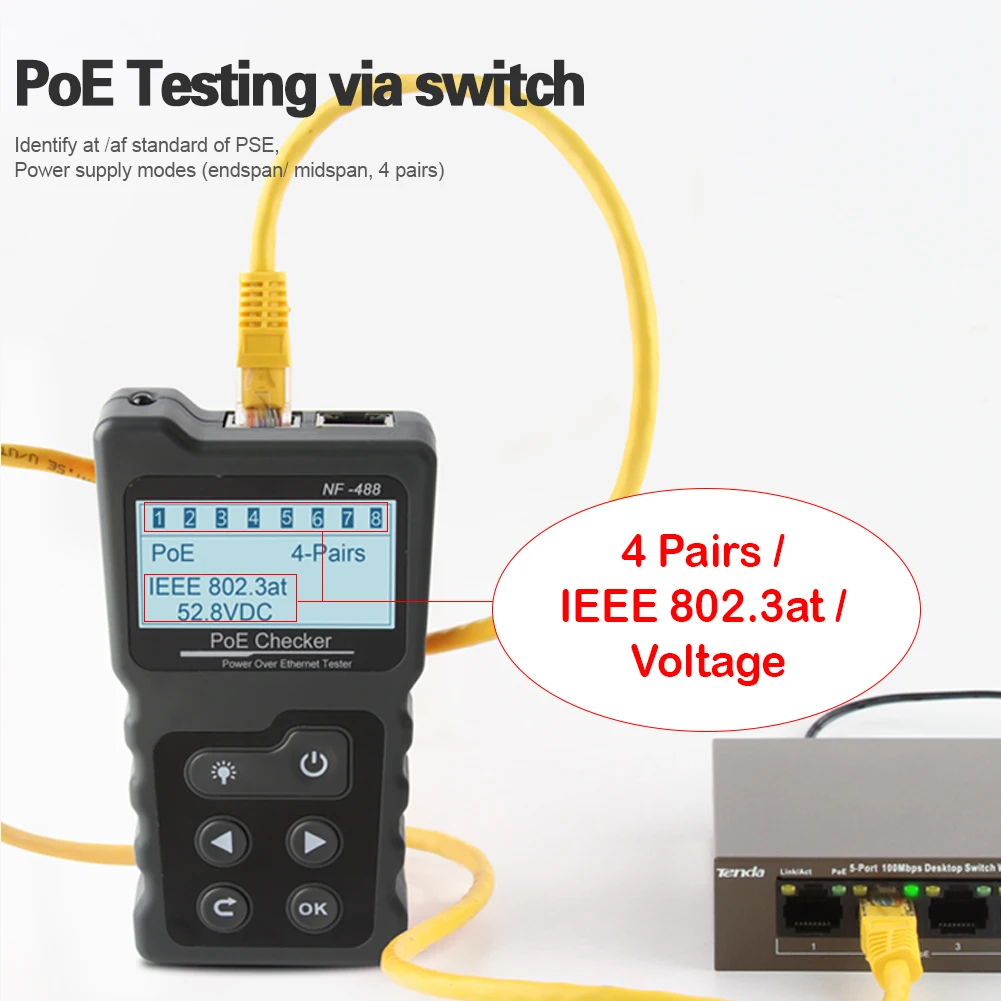

Test the information of the standard/non-standard PoE device, such as voltage, polarity, midspan or endspan.
Identify the type of POE, it is af or at standard.

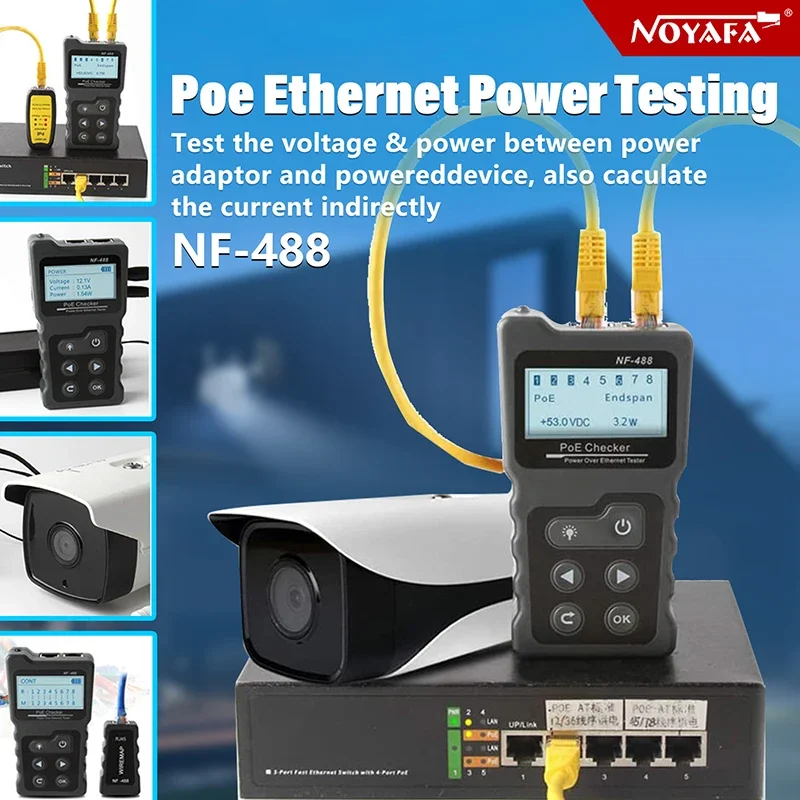

Test of real-time power consumed by PD devices in PoE power supply systems.

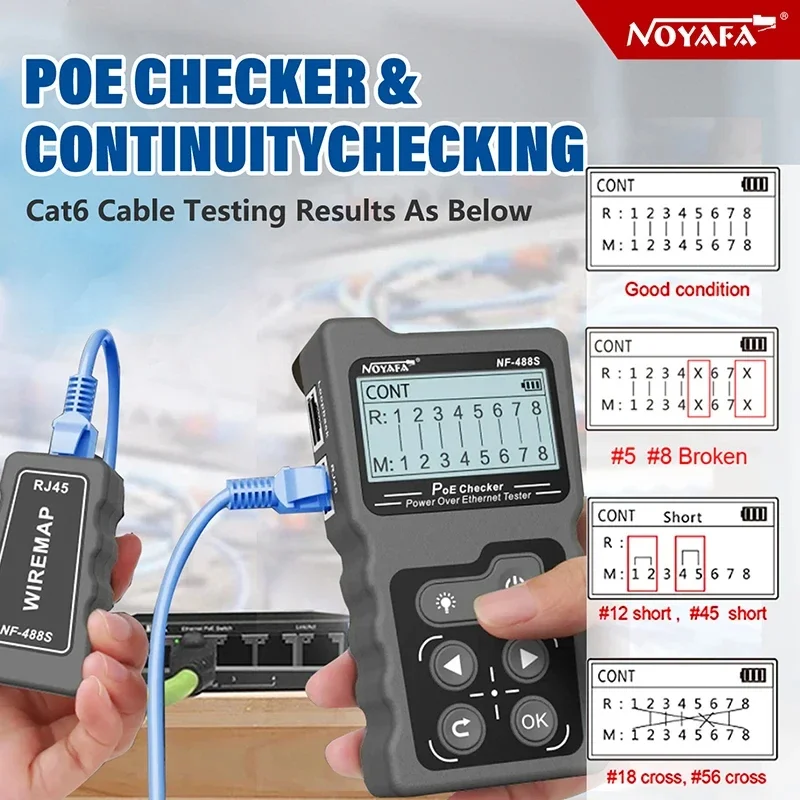

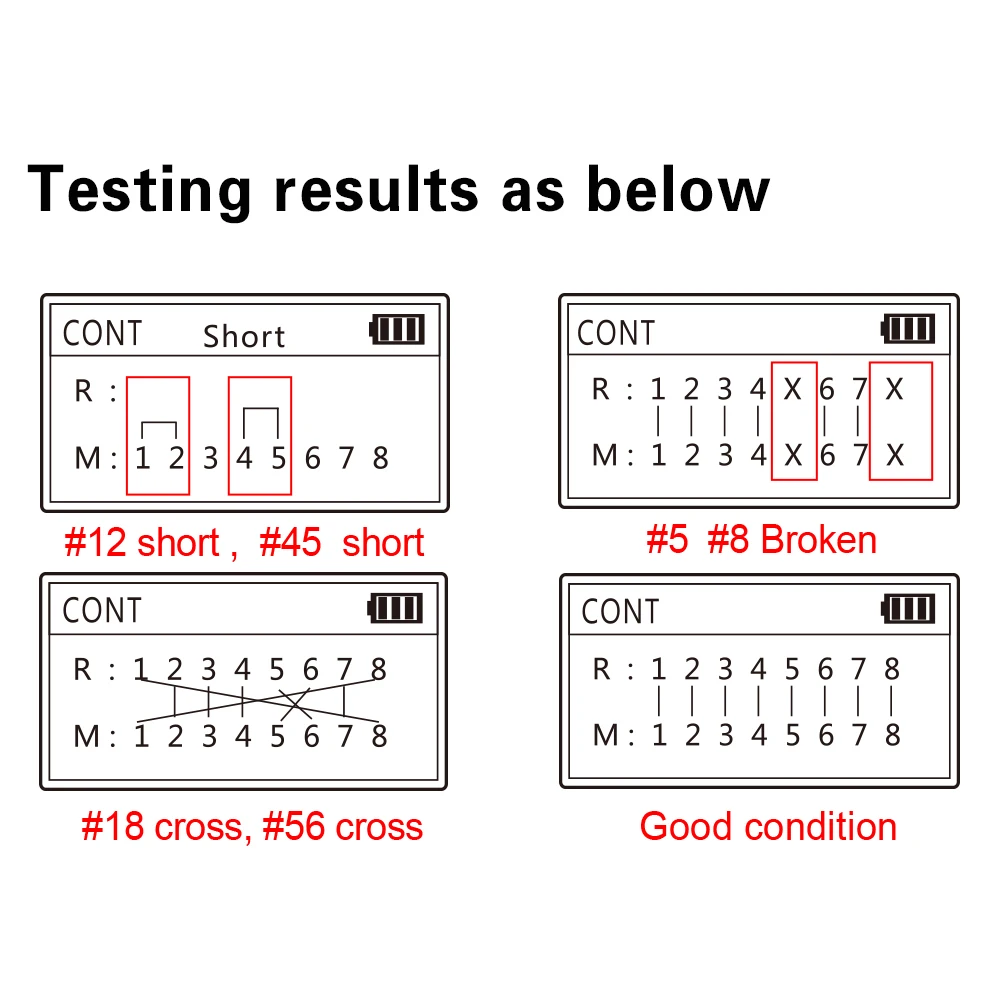

Test the open, short, cross status in the network cable.

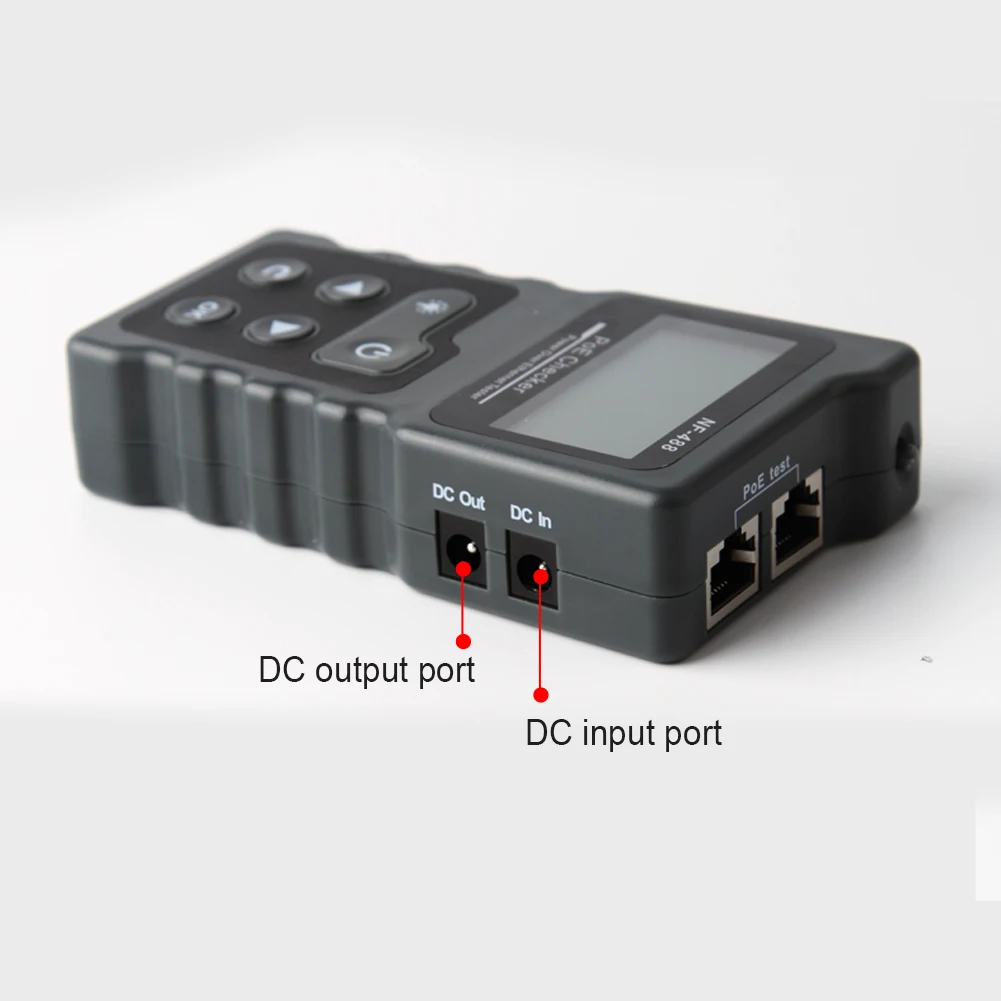

Test the power consumed by DC appliances.

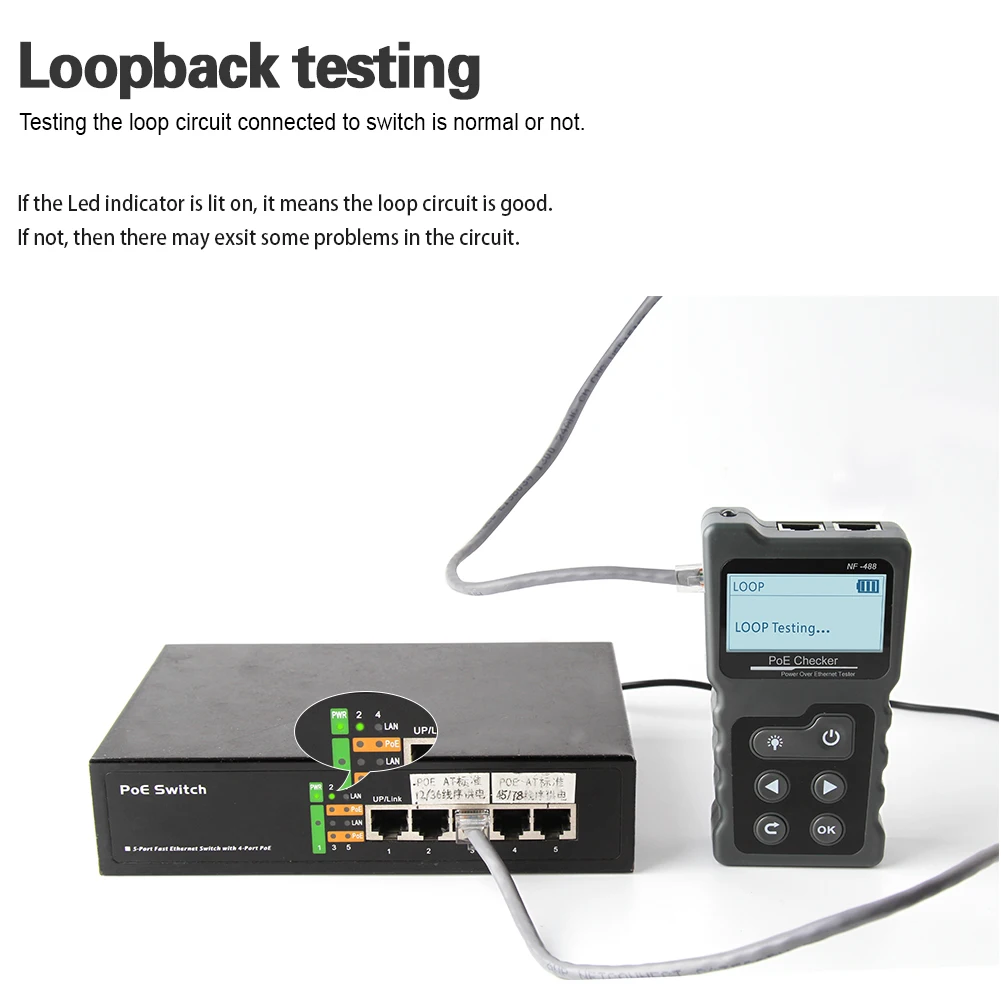

The loop test function of the switch.

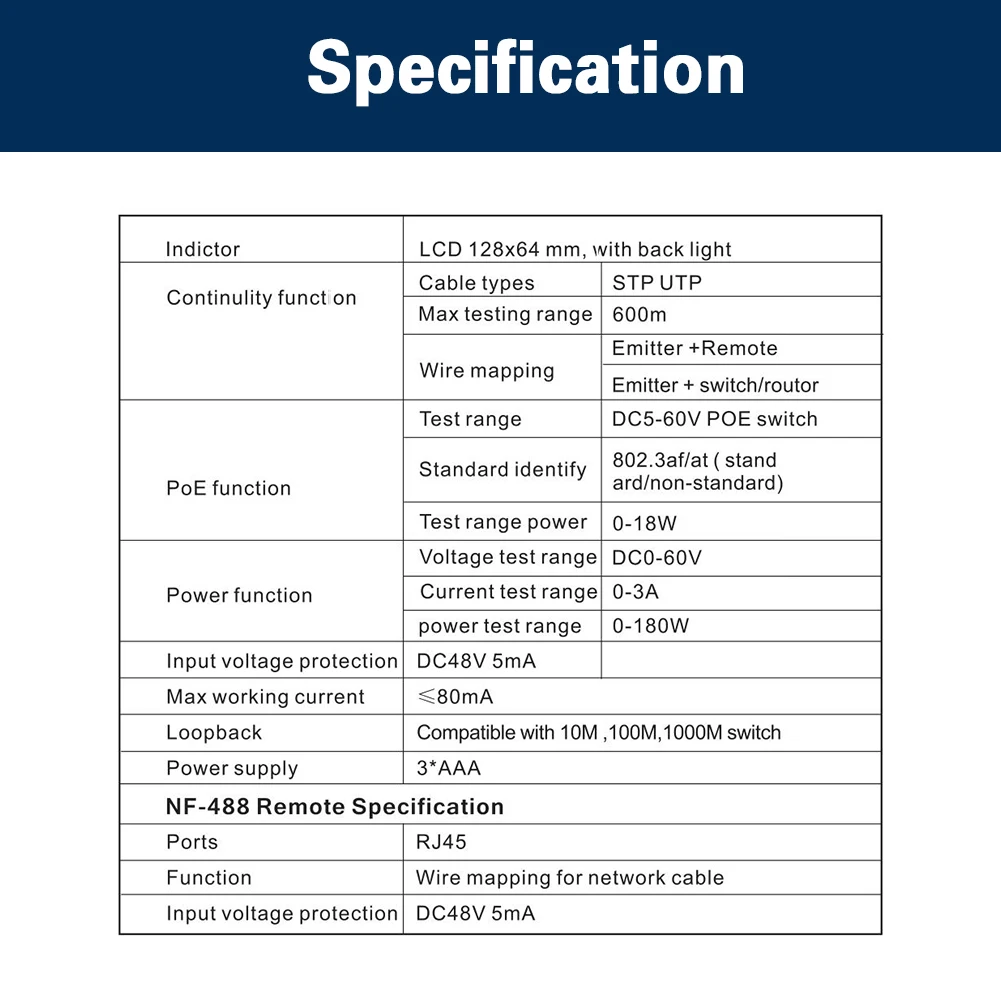

Specifications:
Material: ABS
Transmitter Specification:

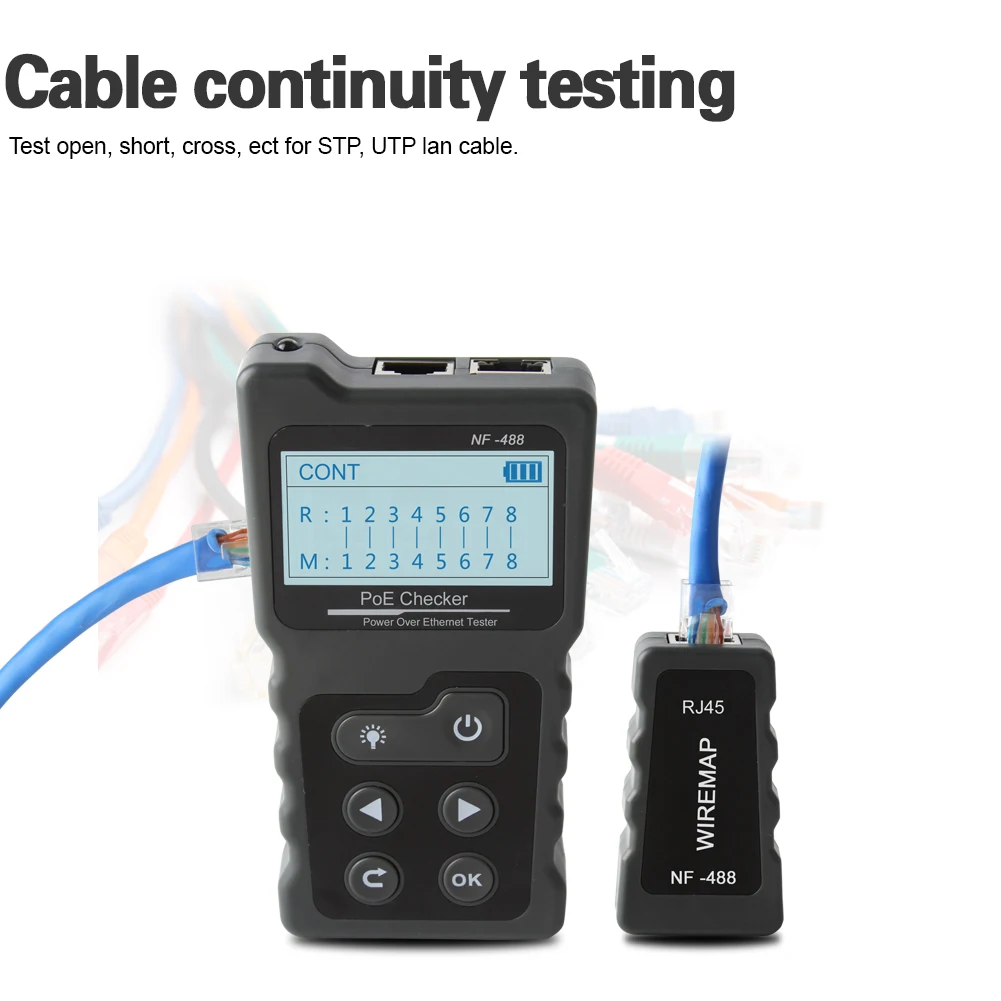

CONTINUITY FUNCTION:
Cable Types: STP/UTP
Max Testing Range: 600m
Wire Mapping: Emitter + remote, emitter + switch/routor

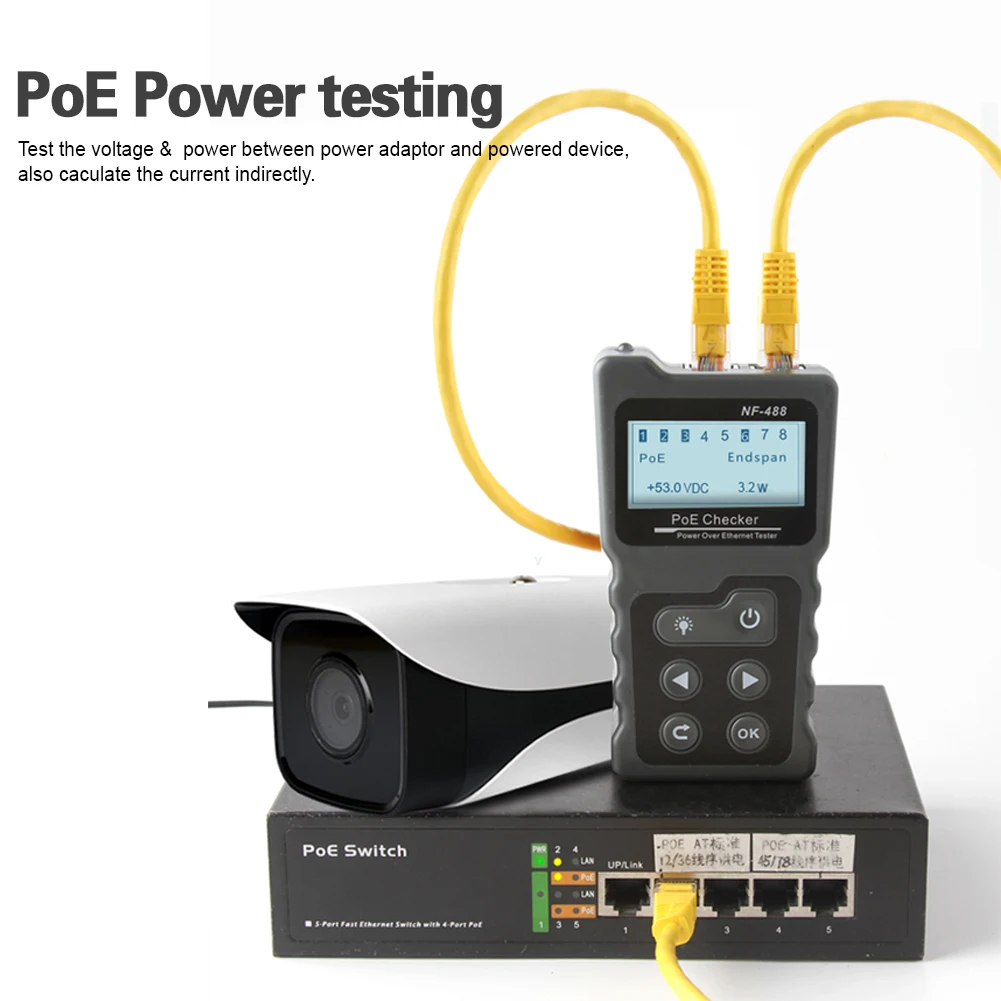

POE FUNCTION:
Test Range: DC5-60V PoE switch
Standard Identify: 802.3af/at(standard/non-standard)
Test Range Power: 0-18W

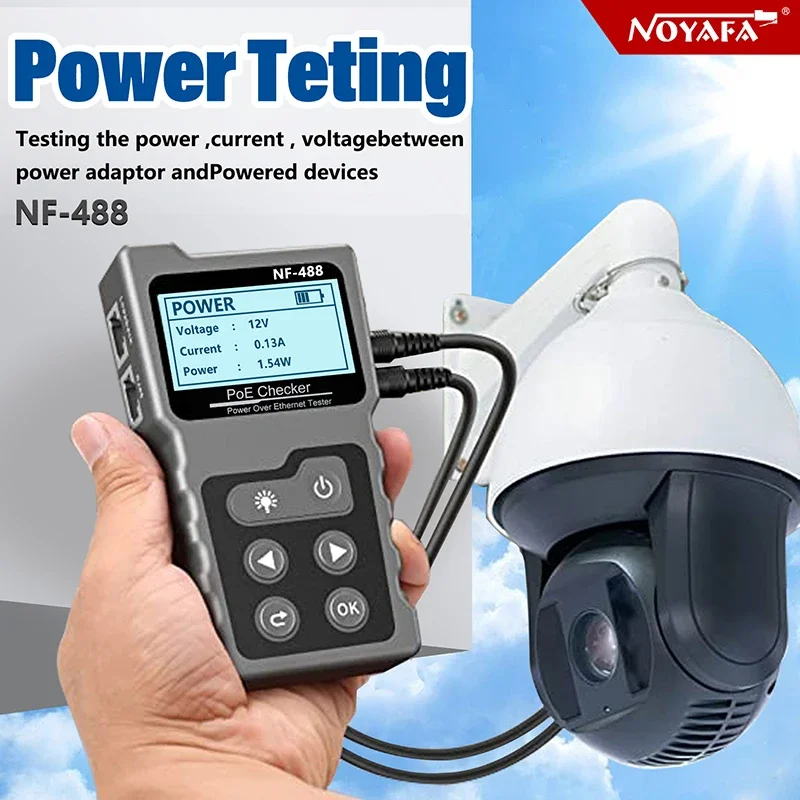

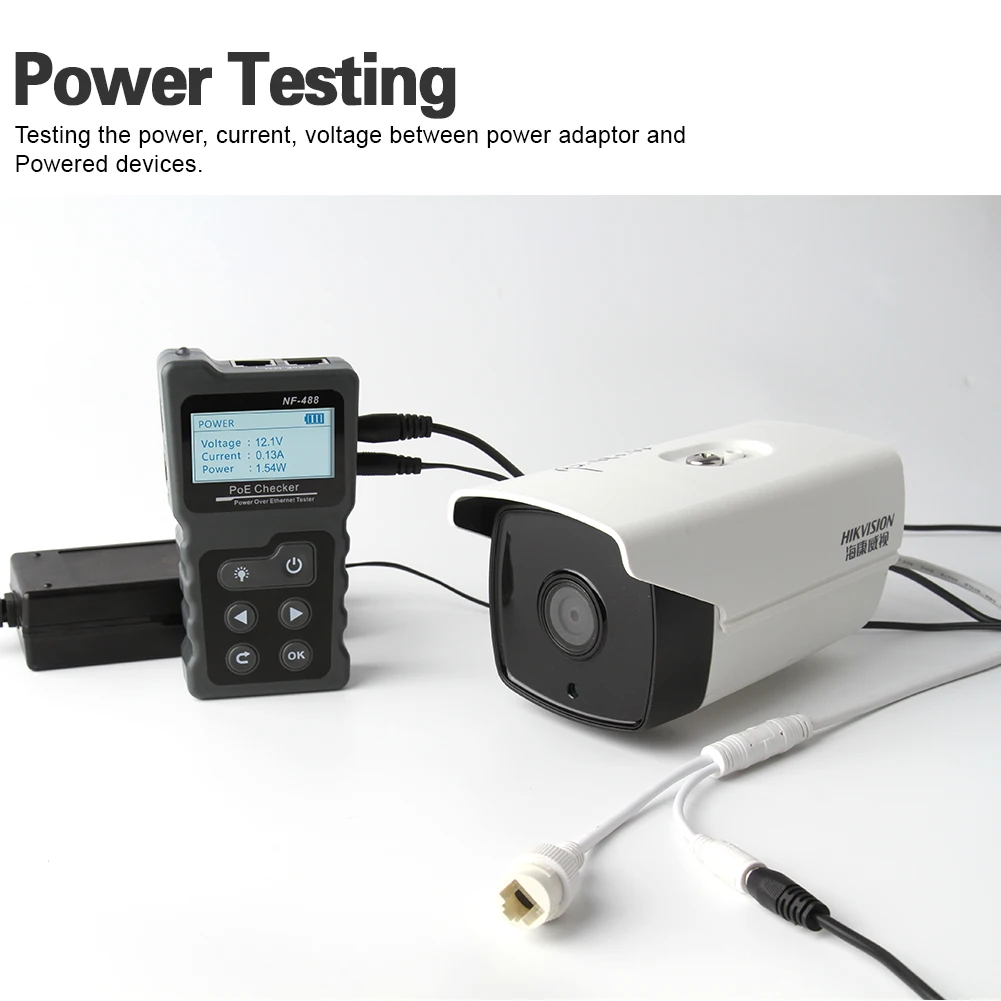

POWER FUNCTION:
Voltage Test Range: DC0-60V
Current Test Range: 0-3A
Power Test Range: 0-180W

Display:

LCD 128*64mm, with back light
Input Voltage Protection: DC48V, 5mA
Max Working Current: ≤80mA
Loopback: Compatible with 10M, 100M,1000M switch
Power Supply: 3 * 1.5V AAA battery (Not included)

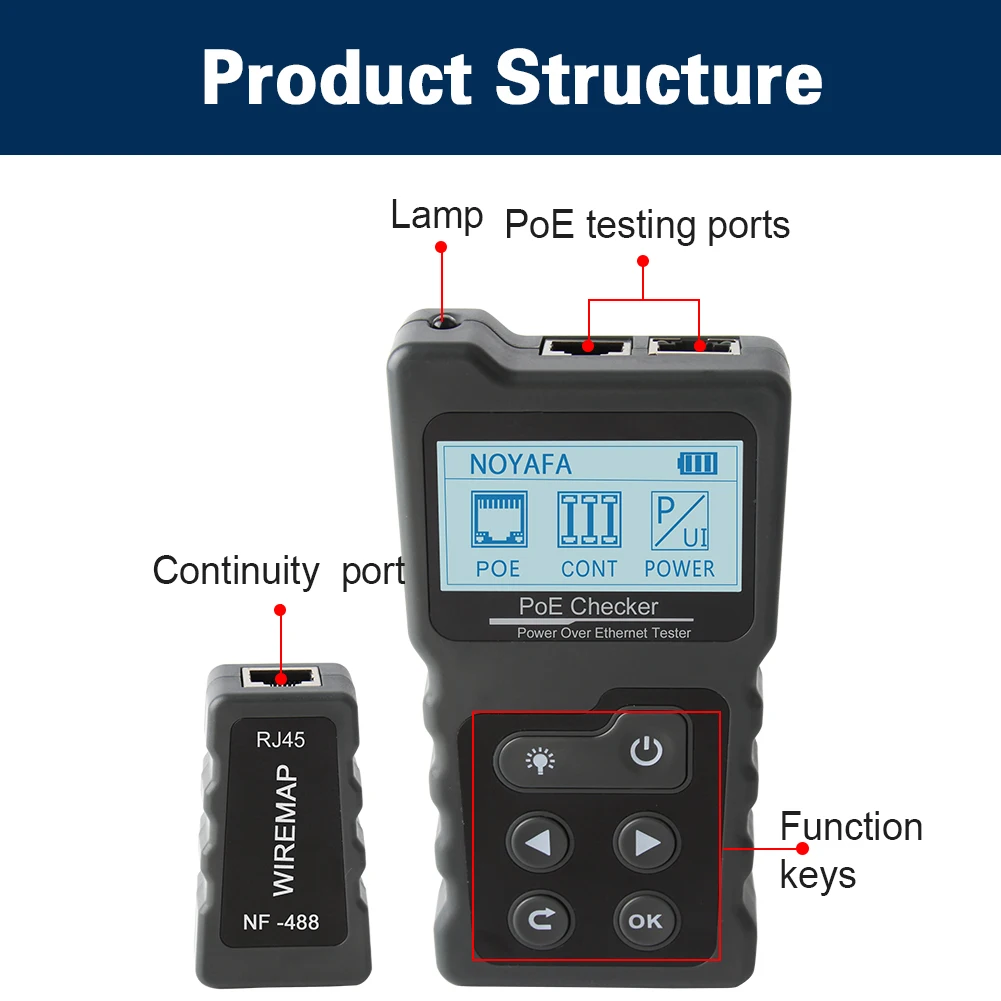

Remote Specification:
Ports: RJ45
Function: Wire mapping for network cable
Input Voltage Protection: DC48V, 5mA

Emitter Size: Approx. 12.5 * 7 * 2.8cm / 4.92 * 2.76 * 1.1in
Remote Size: Approx. 6.5 * 3.7 * 2.3cm / 2.56 * 1.46 * 0.91in
Emitter Weight: Approx. 123g / 4.33oz
Remote Weight: Approx. 24g / 0.86oz
Package Weight: Approx. 301g / 10.64oz
Package Size: Approx. 22.5 * 11 * 4cm / 8.86 * 4.33 * 1.58in

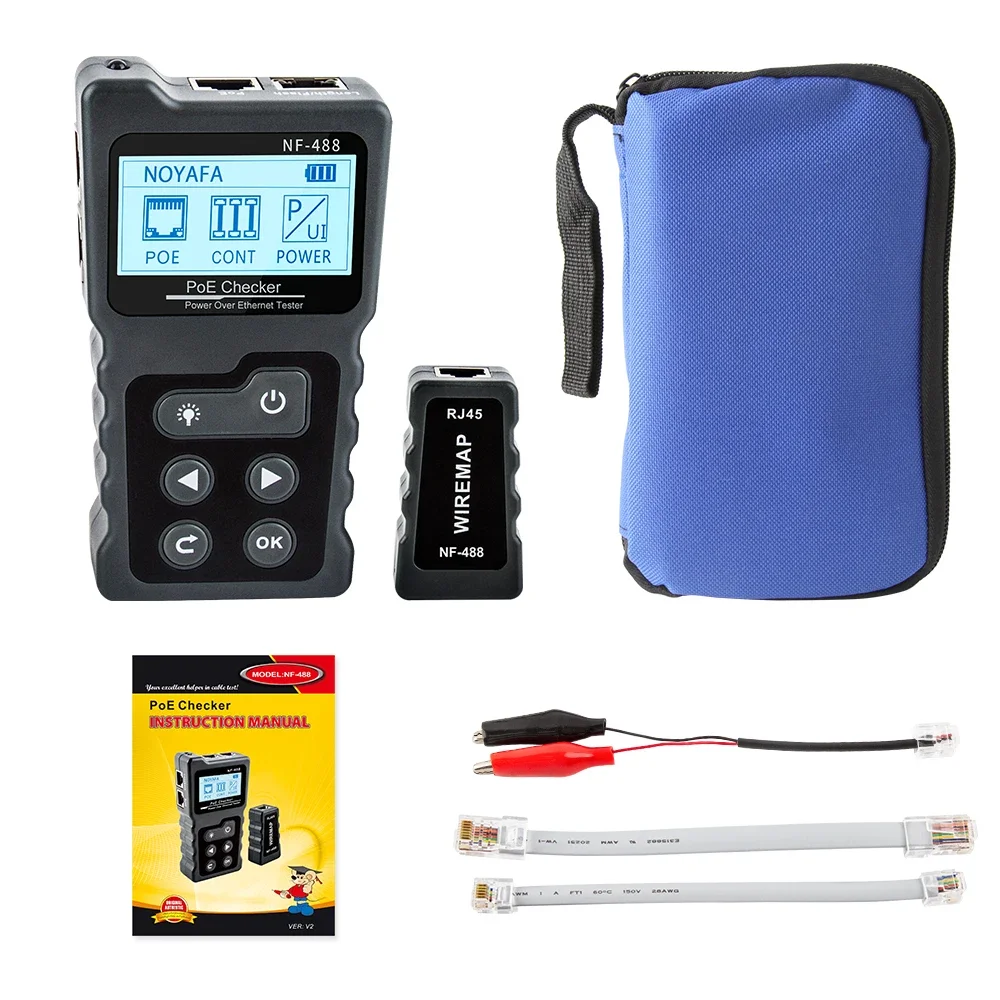

Package List:
1 * Emitter ( battery is not include)
1 * Remote

1 * Crocodile Clip Test Line
2 * Cable Lead
1 * Carry Bag
1 * User Manual
